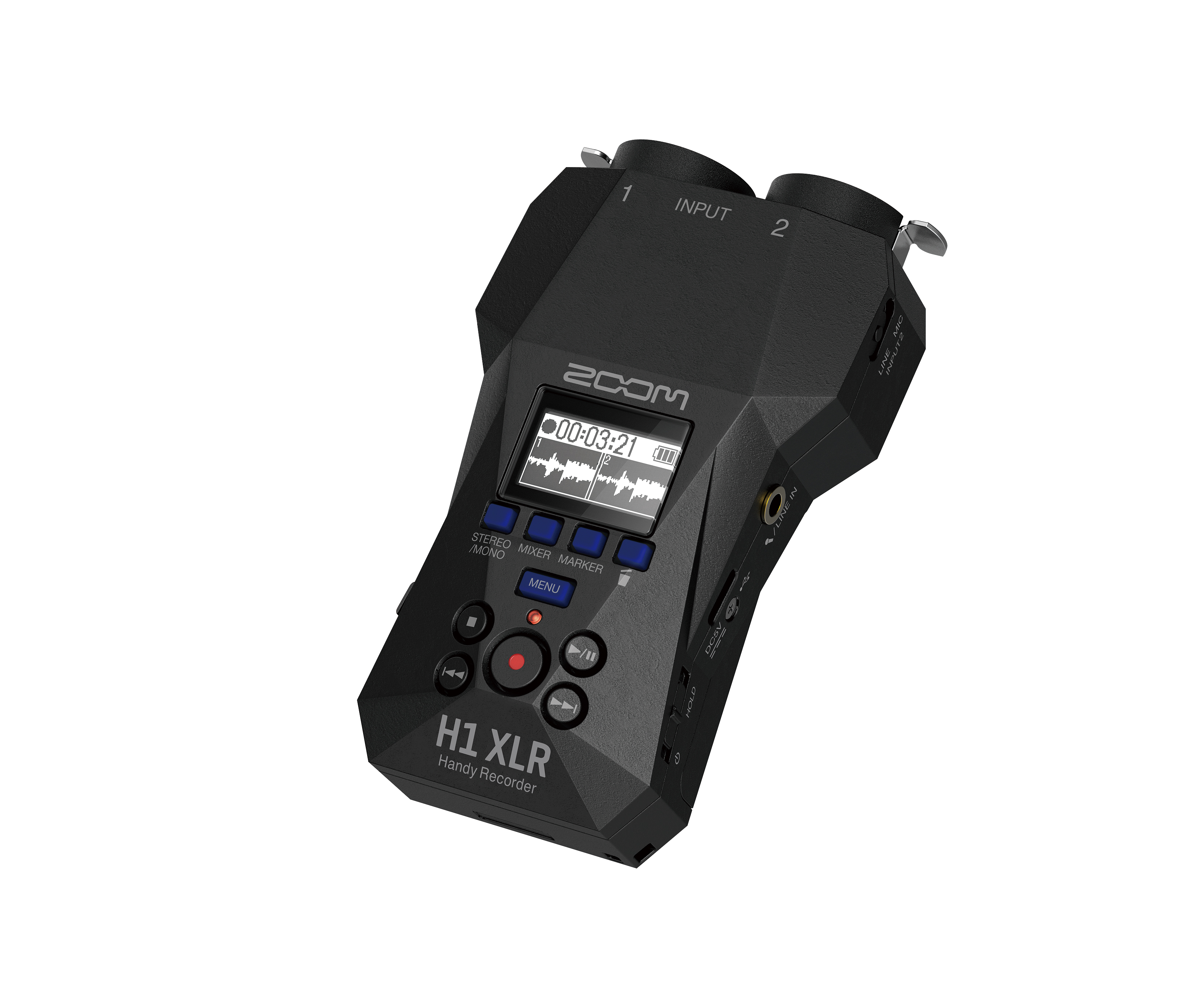

The Record-Everything Recorder
The H1 XLR is the recorder for creators who have no limits. Capture audio for video, direct feeds from mixers, songwriting and more. No need to worry about gain; plug in, hit record, and capture your audio worry-free. With 32-bit float and dual AD converters, the H1 XLR's vast dynamic range preserved details in both quiet and loud recordings.
Aquarian Notes: This recorder can be used with our H2dX (XLR output) hydrophone, or any other phantom powered hydrophone, for personal monitoring and recording with headphones. The headphone / line output can also be connected to the AUX input of a marine stereo or any powered speaker. Sound from the external microphone (hydrophone) input can be monitored even while not recording. Use this as a simple microphone preamp aboard your wildlife-watching vessel so your customers can hear cetaceans and other underwater sound though the boat's audio system and have the added benefit of capturing those sounds in high-fidelity at the push of a button. The pre-record feature buffers the last few seconds of sound, so you can even capture sounds after hearing them.
Zoom H1 XLR essential Features:
- 32-bit float recording: perfect audio with no need to set gain
- Input Flexibility: Equipped with two locking XLR/TRS combo inputs the H1 XLR is ready to record microphones, stereo board feeds, instruments and more. The 3.5mm stereo input allows you to record on-camera mics, lavaliers, phones and other sources.
- Ultra-Clean Preamps: The H1 XLR’s preamps give you crystal clear audio with a -122dB EIN and sample rates up to 96khz.
- Stereo or Mono: The H1 XLR can record both stereo and mono files depending on your application.
- Line Level like a Pro: Capture +4dBu professional line level signals to record clip-free audio from any mixer or line output.
- 32-bit float recording: Capture the roar of the loudest engines and the delicate whispers of nature in stunning quality.
- Perfect Audio for your Mobile Video: Connect the H1 XLR to your mobile device via the USB-C port and record professional audio directly onto your phone's video. Perfect for video podcasts, live streams, and more.
- 32-bit Float Audio Interface: Connect to a PC, Mac, iOS, or Android device and use the H1 XLR as an audio interface while simultaneously recording to the SD card.
- Accessibility: The H1 XLR is designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese.*
- Mic/Line Switch: Flip the switch from mic to line level without having to switch cables.
- Built-in Mixer: Use the mixer to easily adjust each track’s audio level.
- OLED waveform display: The high-contrast OLED screen makes it easy to navigate through the H1 XLR’s simple interface.The real-time waveform display lets you see your audio as it records.
- Headphone Output: Use the 3.5mm headphone output for headphones or to connect directly to a camera.
- Onboard Speaker: Use the onboard speaker to listen to your recordings for quickreference as well as to utilize the accessibility functions.
- High Capacity Storage: The H1 XLR supports SDXC cards up to 1TB to record days of audio.
- Phantom and Plug-In Power: Record condenser microphones with phantom poweror lavaliers with plug-in power.
- Power Options: The H1 XLR can be powered by two AA batteries or via the USB-C port. This includes bus-power as well as external USB battery packs.
NOTE: SDXC memory card is not included and is required for operation.
| INPUTS | CHANNELS | 2 (XLR/TRS mono inputs) | |||
| XLR/TRS IN | CONNECTORS | 2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT, TRS: TIP HOT) |
|||
| INPUT GAIN | Adjustment unnecessary | ||||
| INPUT IMPEDANCE | MIC: 3.8 kΩ or more LINE: 39 kΩ or more |
||||
| Maximum input level | MIC: +4 dBu LINE: +24 dBu |
||||
| Phantom power | +48 V Channel total 10 mA or less |
||||
| Equivalent input noise | MIC: -122 dBu or less（IHF-A) @150 Ω input LINE: -95 dBu or less（IHF-A) @600 Ω input |
||||
| MIC/LINE IN | CONNECTORS | 1/8" stereo mini jack | |||
| INPUT GAIN | Adjustment unnecessary | ||||
| INPUT IMPEDANCE | 2 kΩ or higher input impedance | ||||
| PLUG IN POWER | plug-in power (2.5 V) supported | ||||
| OUTPUTS | LINE OUT/ PHONES |
CONNECTOR | 1/8" stereo mini jack Combined LINE/HEADPHONE |
||
| MAXIMUM OUTPUT LEVEL | 20 mW +20 mW (32 Ω load) |
||||
| OUTPUT IMPEDANCE | 10 Ω | ||||
| BUILT-IN SPEAKER | Type | 20 x 30mm elliptical dynamic speaker | |||
| Effective maximum output | 250mW | ||||
| RECORDING | RECORDING MEDIA | 4GB–32GB microSDHC cards 64GB–1TB microSDXC cards (Not support SD card 1.5TB~) |
|||
| WAV | SUPPORTED FORMATS | 44.1/48/96kHz, 32-bit float mono/stereo BWF and iXML |
|||
| DISPLAY | LCD | 0.96" monochrome OLED (128x64) | |||
| POWER SUPPLIES | BATTERIES | 2 AA (alkaline, NiMH or lithium) | |||
| AC ADAPTER | ZOOM AD-17 (DC 5 V/1 A) • USB bus power is supported. |
||||
| USB | CONNECTOR | USB Type-C | |||
| MASS STORAGE | CLASS | USB 2.0 High Speed | |||
| AUDIO INTERFACE WITH REC |
CLASS | USB class compliant Transfer method: asynchronous |
|||
| SAMPLING RATE | 44.1/48kHz | ||||
| BIT RATE | 16-bit integer / 32-bit float |
||||
| CHANNELS | 2 in/2 out | ||||
| ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES | 2ch recording to microSDHC card | Approximately 10 hours (alkaline batteries, using stereo line input, 48 kHz/32-bit float) |
|||
